LCD Display 16 X 2 white on blue

LCD Display 16 X 2 white on blue

LCD Display 16 X 2 white on blue

LCD display 16 X 2 with backlight and HD44780 interface.

White characters on blue background.

Working Voltage: 5V
Display Format: 16 Characters x 2 lines
LCD Type: STN Blue
LED Backlight: Blue
Module Size (L x W x H): Approx. 3.1 x 1.4 x 0.4 inch / 8 x 3.6 x 1.1cm
Viewing Area: Approx. 2.5 x 0.6 inch / 6.4 x 1.5 cm

Article code: DIS101
7.95

LCD display 16 X 2 with backlight and HD44780 interface.

White characters on blue background.

Working Voltage: 5V
Display Format: 16 Characters x 2 lines
LCD Type: STN Blue
LED Backlight: Blue
Module Size (L x W x H): Approx. 3.1 x 1.4 x 0.4 inch / 8 x 3.6 x 1.1cm
Viewing Area: Approx. 2.5 x 0.6 inch / 6.4 x 1.5 cm

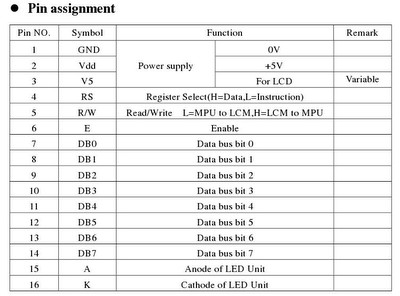

HD44780 lcd connections
