SMD led rood (626nm) Agilent type HSMS-C190

SMD led rood (626nm) Agilent type HSMS-C190
Euro 0.10 *Prijzen zijn inclusief btw
ArtikelcodeLED158-F2

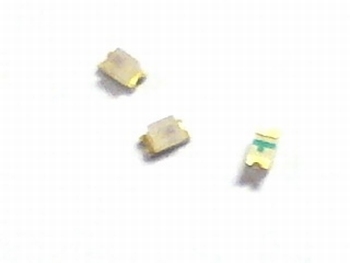

SMD led Agilent HE - rood (626nm) HSMS-C190, 170 graden , 10 MCD. 1.6 x 0.8 mm footprint.

Lens Shape: Rectangular
Forward Current If Max: 20mA
Forward Voltage VF Max: 2.6V
Lens Style: Untinted Diffused
Light Output Orientation: Top Emitting
Material: GaP
Mounting Type: SMD
No. of Pins: 2
Operating Temperature Range: -30°C to +85°C
Power Dissipation Pd: 52mW

Afmetingen 0.8mm x 1mm x 1.6mm

SMD led Agilent HE - rood (626nm) HSMS-C190, 170 graden , 10 MCD, 1.6 x 0.8 mm footprint.

Lens Shape: Rectangular
Forward Current If Max: 20mA
Forward Voltage VF Max: 2.6V
Lens Style: Untinted Diffused
Light Output Orientation: Top Emitting
Material: GaP
Mounting Type: SMD
No. of Pins: 2
Operating Temperature Range: -30°C to +85°C
Power Dissipation Pd: 52mW

Afmetingen 0.8mm x 1mm x 1.6mm
